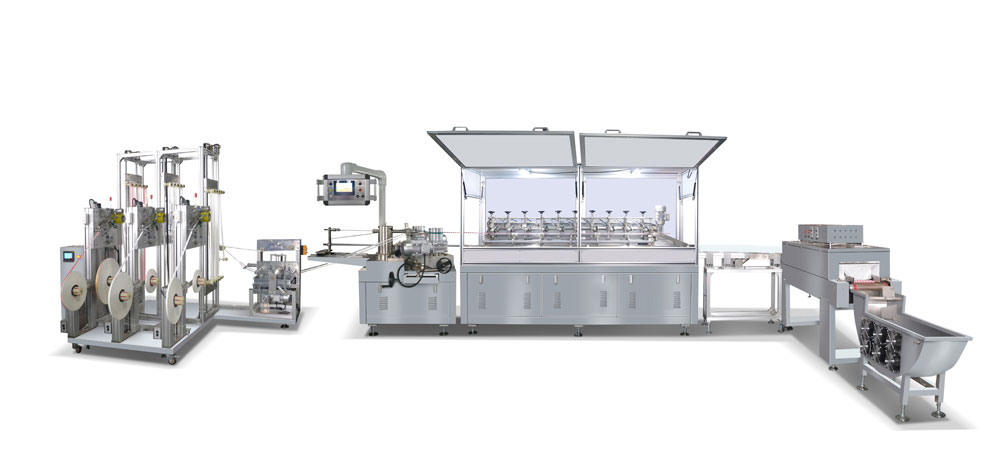

Paper Drinking Straw Production Line

Paper Straw Making Machine

Our paper drinking straw production line is high speed paper straw making machine dedicated to manufacture food-grade paper drinking straws that are constructed of 3 plies of paper. This drinking straw making machine is capable of accomplishing processes of paper feeding, adhesive feeding, winding, cutting and drying. CNC multi-knife cutting system is configured with up to 10 knives, significantly improving the in-line paper cutting efficiency. As an example, for paper straw with diameter 6mm and length 197mm, the production output reaches 300 straws per minute.

Inquiry

You can contact us for a quotation or with any questions you may have on this product.

Technical Data
No. of ply 3 plies
Outer diameter of paper tube 5mm-12mm
Wall thickness of paper tube 0.5-2mm
Speed 60-70m/min
Tube cutting method Multi-knife cutting
Cutting system Servo motor synchronous, in-line cutting with multiple knives
Gluing method Single / double side
Power supply 380V three phase 50Hz
Machine weight 1600kg
Operating area Approx. 9000*5000mm
